Fixed Head Stock Lathes

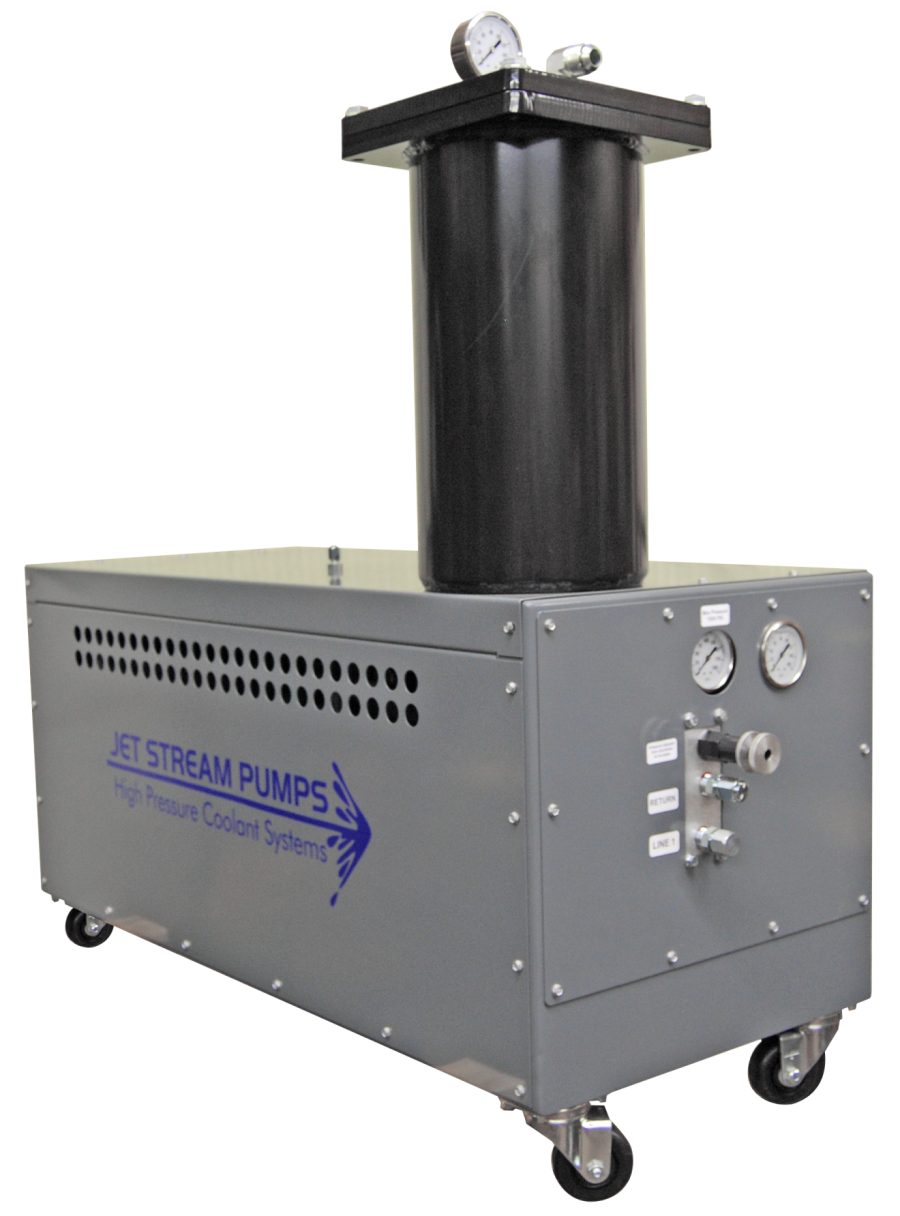

BLUE JET 1 Line:

Part # JSBJ-1L-500-T

The Jet Stream Blue Jet 1 line is for Lathes machines. The high pressure pump is a heavy duty Hydra-Cell with a proven history of long service life without leaks on the floor. The Jet Stream Blue Jet 1 line is available in 8 GPM 500 PSI. All Jet Stream pumps come with an installation kit customized for the machine to save the installer return trips.  All of our pumps come with a one year warranty on defective parts and life time product phone support 24 hours a day.

Advantages:

  • Hydra Cell pump for long life with little service
  • Bypass valve for low pressure to turret
  • Adjustable pressure control
  • Index dump valve
  • Filter basket has ID-OD for longer filter lift
  • Bag filter is easy to change and lower in cost when compared to a pleated cartridge filter
JSBJ-1L-500-T

Specifications:

Pump Output
8 GPM Hydra Cell
Pressure
500 PSI
Built in feed pump
No
Port Type
1 Port valve block
Motor
5 HP TEFC motor
Filter System
5 Micron bag filter

BLUE JET 1 Line:

Part # JSBJ-1L-8G-T

The Jet Stream Blue Jet 1 line is for Lathes machines. The high pressure pump is a heavy duty Hydra-Cell with a proven history of long service life without leaks on the floor. The Jet Stream Blue Jet 1 line is available in 8 GPM 1000 PSI. All Jet Stream pumps come with an installation kit customized for the machine to save the installer return trips.  All of our pumps come with a one year warranty on defective parts and life time product phone support 24 hours a day.

Advantages:

  • Hydra Cell pump for long life with little service
  • Bypass valve for low pressure to turret
  • Adjustable pressure control
  • Index dump valve
  • Filter gauges
  • Filter basket has ID-OD for longer filter lift
  • Bag filter is easy to change and lower in cost when compared to a pleated cartridge filter
  • Electrical controls 24VDC
JSBJ-1L-500-T

Specifications:

Pump Output
8 GPM Hydra Cell
Pressure
1000 PSI
Built in feed pump
No
Port Type
1 Port valve block
Motor
7.5 HP TEFC motor
Filter System
5 Micron bag filter

BLUE JET 1 Line Turret:

Part # JSBJ-1L-T

The Jet Stream Blue Jet 1 Line Turret is for Lathes machines. The high pressure pump is a heavy duty Hydra-Cell with a proven history of long service life without leaks on the floor. The Jet Stream Blue Jet 1 Line Turret is available in 6 GPM 1000 PSI. All Jet Stream pumps come with an installation kit customized for the machine to save the installer return trips.  All of our pumps come with a one year warranty on defective parts and life time product phone support 24 hours a day.

Advantages:

  • Hydra Cell pump for long life with little service
  • Bypass valve for low pressure to turret
  • Adjustable pressure control
  • Index dump valve
  • Filter gauges
  • Filter basket has ID-OD for longer filter lift
  • Bag filter is easy to change and lower in cost when compared to a pleated cartridge filter
  • Electrical controls 24VDC
JSBJ-1L-500-T

Specifications:

Pump Output
6 GPM Hydra Cell
Pressure
1000 PSI
Built in feed pump
No
Port Type
1 Port valve block
Motor
5 HP TEFC motor
Filter System
5 Micron bag filter

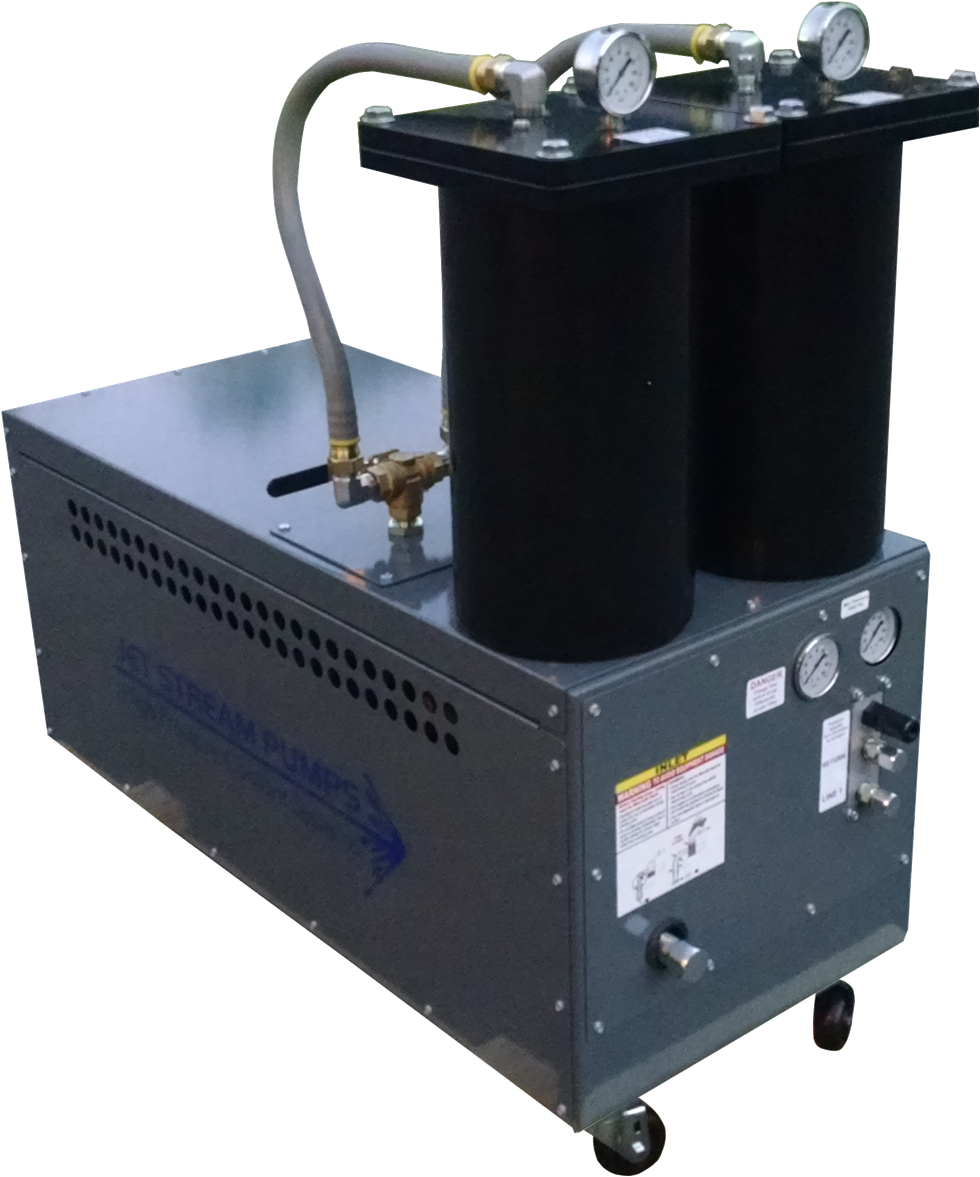

BLUE JET Twin Filter:

Part # JSBJ-1K4G-WF

The Jet Stream Blue Jet Twin Filter is for Lathes machines. The high pressure pump is a heavy duty Hydra-Cell with a proven history of long service life without leaks on the floor. The Jet Stream Blue Jet Twin Filter is available in 4 GPM 1000 PSI. All Jet Stream pumps come with an installation kit customized for the machine to save the installer return trips.  All of our pumps come with a one year warranty on defective parts and life time product phone support 24 hours a day.

Advantages:

  • Hydra Cell pump for long life with little service
  • Bypass valve for low pressure to turret
  • Adjustable pressure control
  • Index dump valve
  • Filter gauges
  • Filter basket has ID-OD for longer filter lift
  • Bag filter is easy to change and lower in cost when compared to a pleated cartridge filter
  • Electrical controls 24VDC
JSBJ-1K4G-WF

Specifications:

Pump Output
4 GPM Hydra Cell
Pressure
1000 PSI
Built in feed pump
Yes - 1.5 HP
Port Type
1 Port valve block
Motor
3 HP TEFC motor
Filter System
Twin 5 Micron bag filters

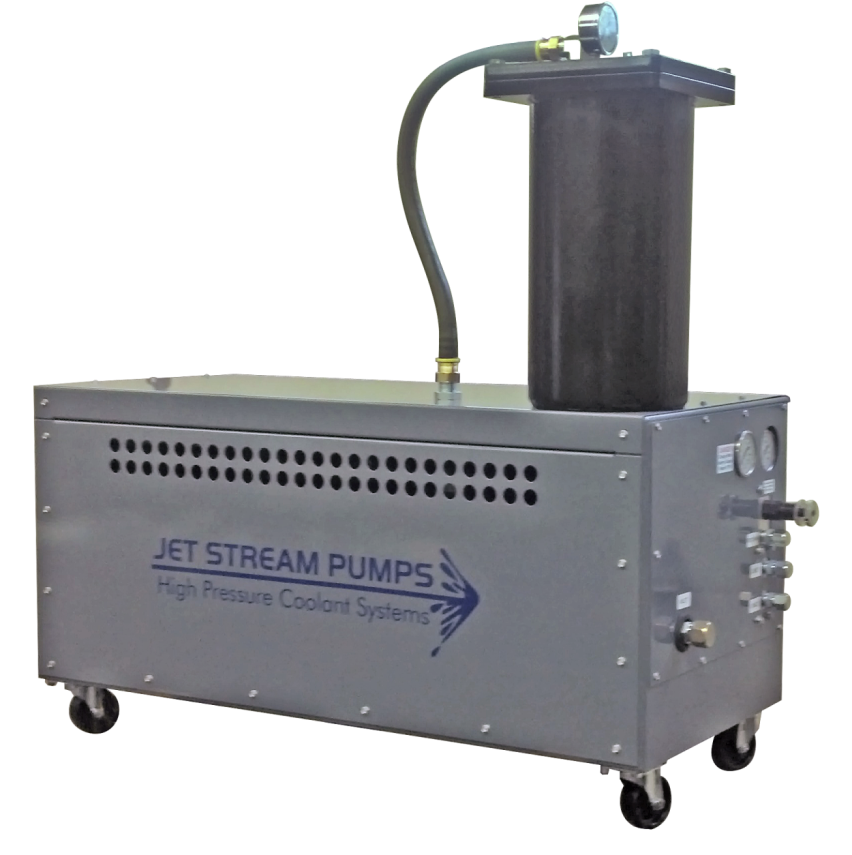

BLUE JET 2 Line with feed pump:

Part # JSBJ-2L-WF

The Jet Stream Blue Jet 2 line with feed pump is for Lathes machines. The high pressure pump is a heavy duty Hydra-Cell with a proven history of long service life without leaks on the floor. The Jet Stream Blue Jet 2 line with feed pump is available in 8 GPM 1000 PSI. All Jet Stream pumps come with an installation kit customized for the machine to save the installer return trips.  All of our pumps come with a one year warranty on defective parts and life time product phone support 24 hours a day.

Advantages:

  • Hydra Cell pump for long life with little service
  • Adjustable pressure control
  • Filter gauges
  • Filter basket has ID-OD for longer filter lift
  • Bag filter is easy to change and lower in cost when compared to a pleated cartridge filter
  • Electrical controls 24VDC
JSBJ-2L-WF

Specifications:

Pump Output
8 GPM Hydra Cell
Pressure
1000 PSI
Built in feed pump
Yes - 1.5 HP
Port Type
2 Port valve block
Motor
7.5 HP TEFC motor
Filter System
5 Micron bag filter

Note: One year defective parts warranty. One 24vdc M code output per line. Free Lifetime phone support direct from factory in U.S.A.

BLUE JET 3 Line with feed pump:

Part # JSBJ-3L-WF

The Jet Stream Blue Jet 3 line with feed pump is for Lathes machines. The high pressure pump is a heavy duty Hydra-Cell with a proven history of long service life without leaks on the floor. The Jet Stream Blue Jet 3 line with feed pump is available in 8 GPM 1000 PSI. All Jet Stream pumps come with an installation kit customized for the machine to save the installer return trips.  All of our pumps come with a one year warranty on defective parts and life time product phone support 24 hours a day.

Advantages:

  • Hydra Cell pump for long life with little service
  • Adjustable pressure control
  • Filter gauges
  • Filter basket has ID-OD for longer filter lift
  • Bag filter is easy to change and lower in cost when compared to a pleated cartridge filter
  • Electrical controls 24VDC
JSBJ-2L-WF

Specifications:

Pump Output
8 GPM Hydra Cell
Pressure
1000 PSI
Built in feed pump
Yes - 1.5 HP
Port Type
3 Port valve block
Motor
7.5 HP TEFC motor
Filter System
5 Micron bag filter

Note: One year defective parts warranty. One 24vdc M code output per line. Free Lifetime phone support direct from factory in U.S.A.
